Multi-channel boards which operate either as a Bus Controller, Remote Terminal, or Bus Monitor.  These boards are based on the industry-standard "Summit" chip which is RT validated. All of the products in this board family can be "ruggedized" with conformal coating and extended temperatures.

NOTE: The below family of cards are Legacy products. All new projects should use our new line of cards (these cards are not compatible to our MCH family of cards)  Click for our new line of mil std 1553 products

EXC-1553PCMCIA/B-R
PCMCIA

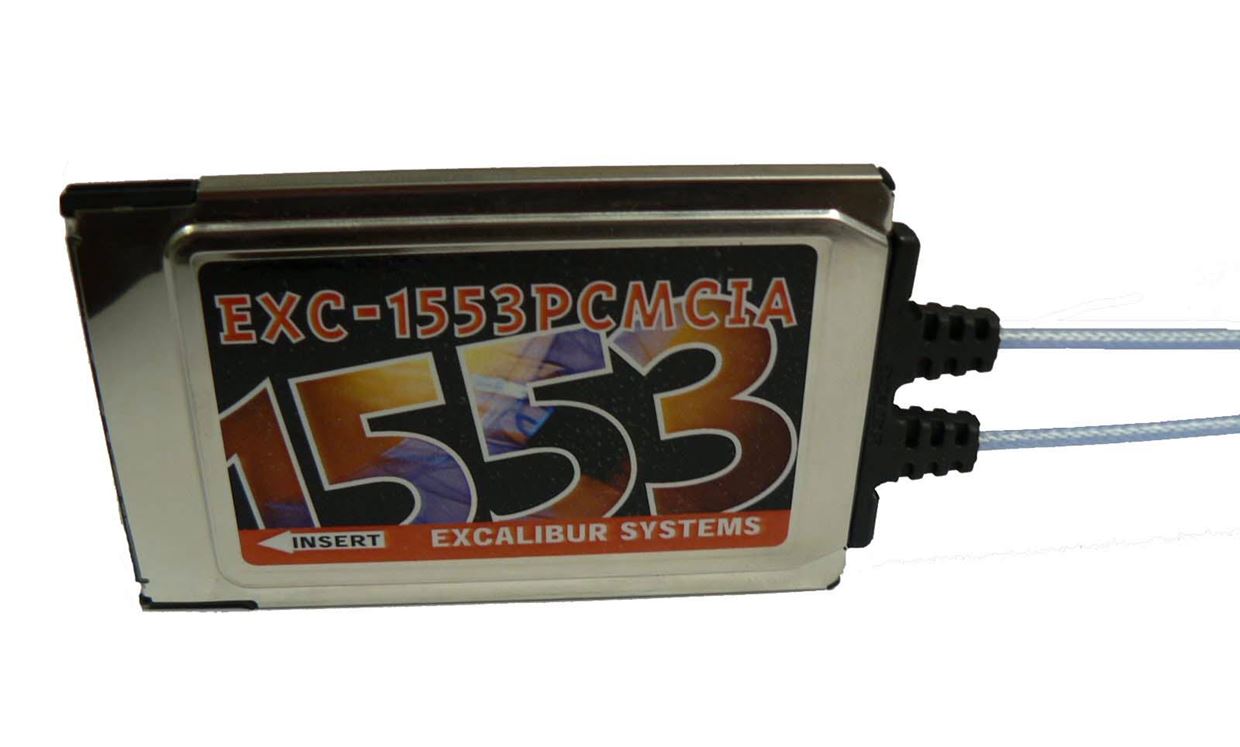

The EXC-1553PCMCIA is an intelligent MIL-STD-1553 interface card for PCMCIA equipped computers.
EXC-1553PCI/MCH
PCI

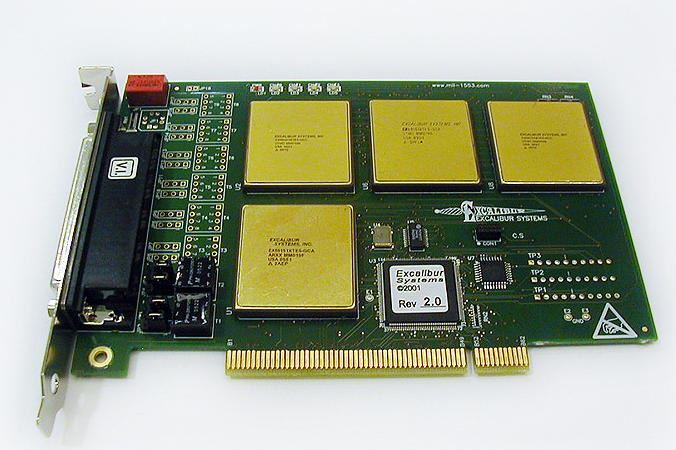

The EXC-1553PCI/MCH-x is a multi-channel (up to four channels) MIL-STD-1553 interface board for PC compatible computers.
cPCI
cPCI

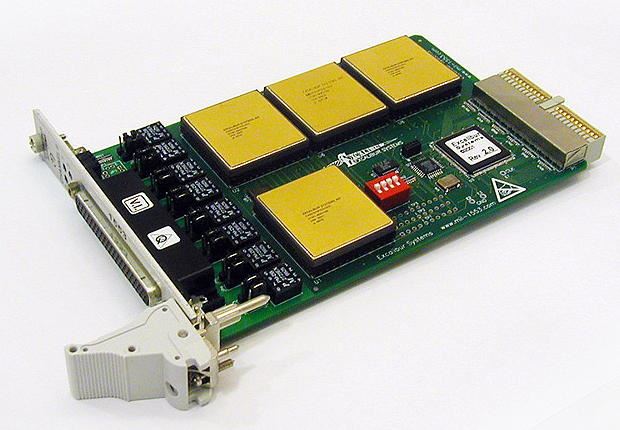

The EXC-1553cPCI/MCH-x is a multi-channel (up to four channels) MIL-STD-1553 interface board for Compact PCI systems.
PC/104
PC/104

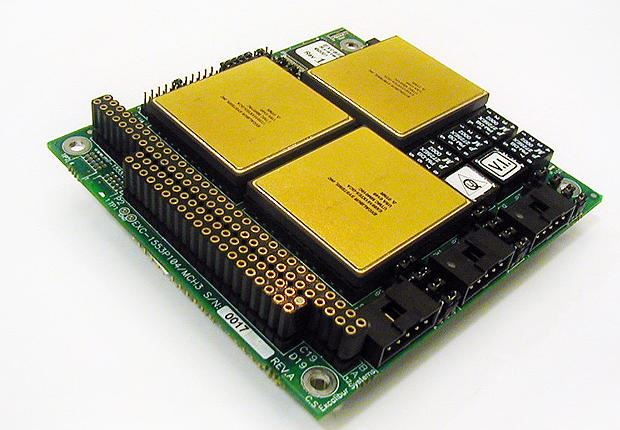

The EXC-1553P104/MCH-x is a multi-channel (up to three channels) MIL-STD-1553 interface board for PC/104 computers.
PC/104 Plus
PC/104 Plus

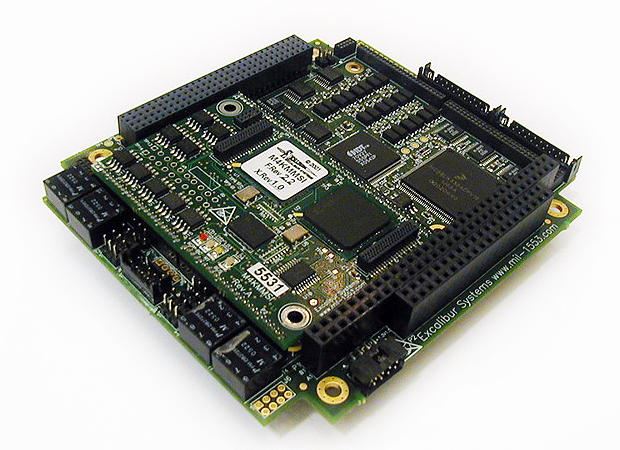

The EXC-4000P104Plus/Ex is a multi-channel (up to two channels) MIL-STD-1553 interface board for PC/104 Plus computers. This multi protocol card has the option of adding other protocols as well on the same card.
EXC-1553PMC/MCH-4
PMC & ccPMC

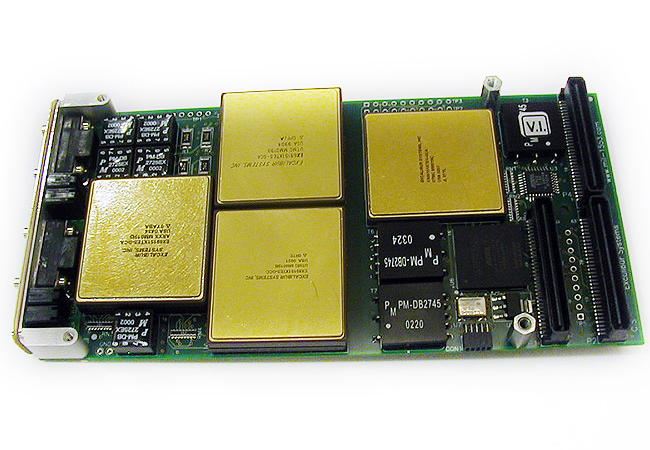

The EXC-1553(cc)PMC/MCH-x is a multi-channel (up to four channels) MIL-STD-1553 interface boards for convection or conduction cooled PCI Mezzanine Card compatible computers.
VME / VXI
VME / VXI

The EXC-1553VME/MCH & EXC-1553VXI/MCH are multi-channel (up to eight channels) MIL-STD-1553 interface cards for VME and VXI systems.
Multi Protocol 4000 Board
Multi Protocol 4000 Board

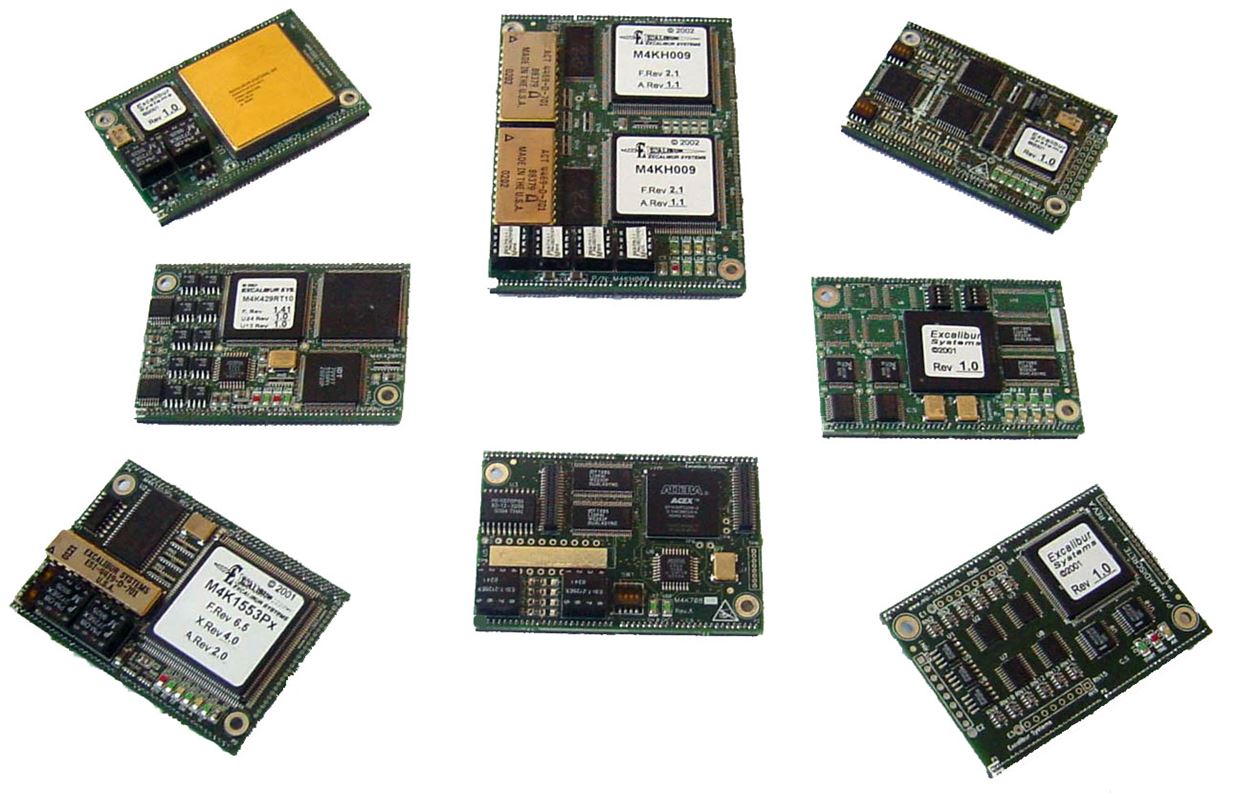

The EXC-4000 carrier board series was developed to meet the needs of avionic testers for multi-protocol integrated, digital bus testing. Modules may be selected out of a growing list which currently includes MIL-STD-1553/1760, MMSI, H009, ARINC-429, ARINC-708/453, Serial (232/422/485), Discrete and CAN bus.
