Discrete Module: A Complete Solution

The Discrete module is an interface module for the multimode, multiprotocol Excalibur EXC-4000/8000 family of carrier boards. The Discrete module provides a complete solution for developing and testing discrete voltage-level interfaces.

The module contains control I/O registers that may be accessed in real time. The user can set each discrete:

• Either as input or output.

• Either to TTL (0 – 5V) or Avionics (0 – 32V) voltage levels and

• Either enable or disable external debounce

Output discretes are open collector, capable of handling up to 32V with a maximum current of 100 mA each.

There is a 4092 word FIFO, capable of storing 1023 discrete entries containing the discrete data and Time Tags.

USB/Ethernet

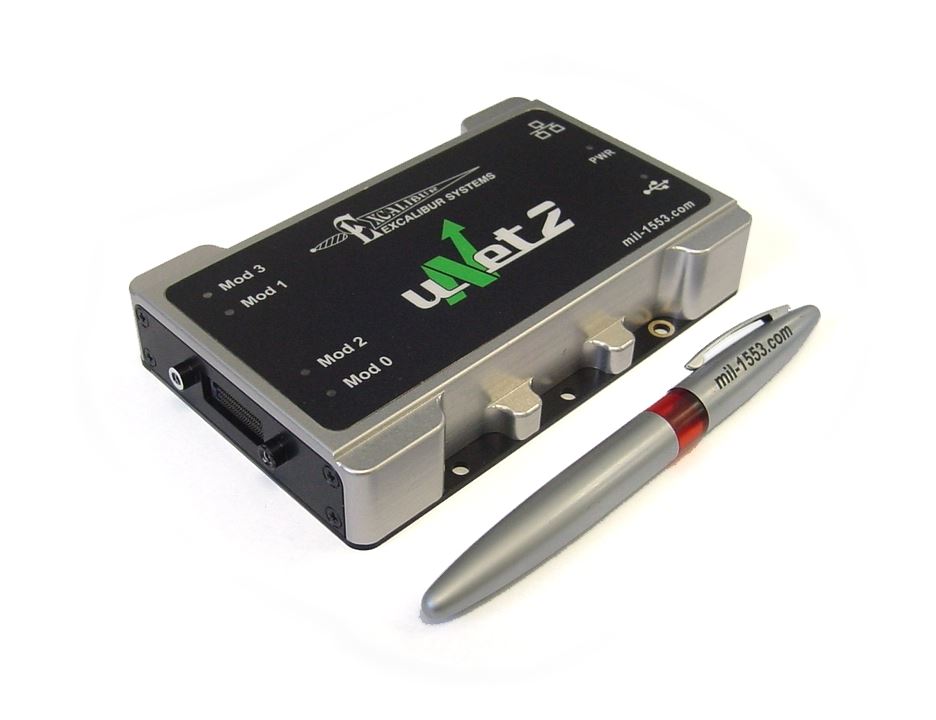

The EXC-Unet2 is an advanced Multi Protocol adapter and together with the M8KDiscrete module gives you a Discrete test and simulation adapter for USB or Ethernet equipped computers

PCI Express

Excalibur's discrete PCI Express interface boards provide a complete solution for developing and testing discrete voltage-level interfaces.

ccXMC

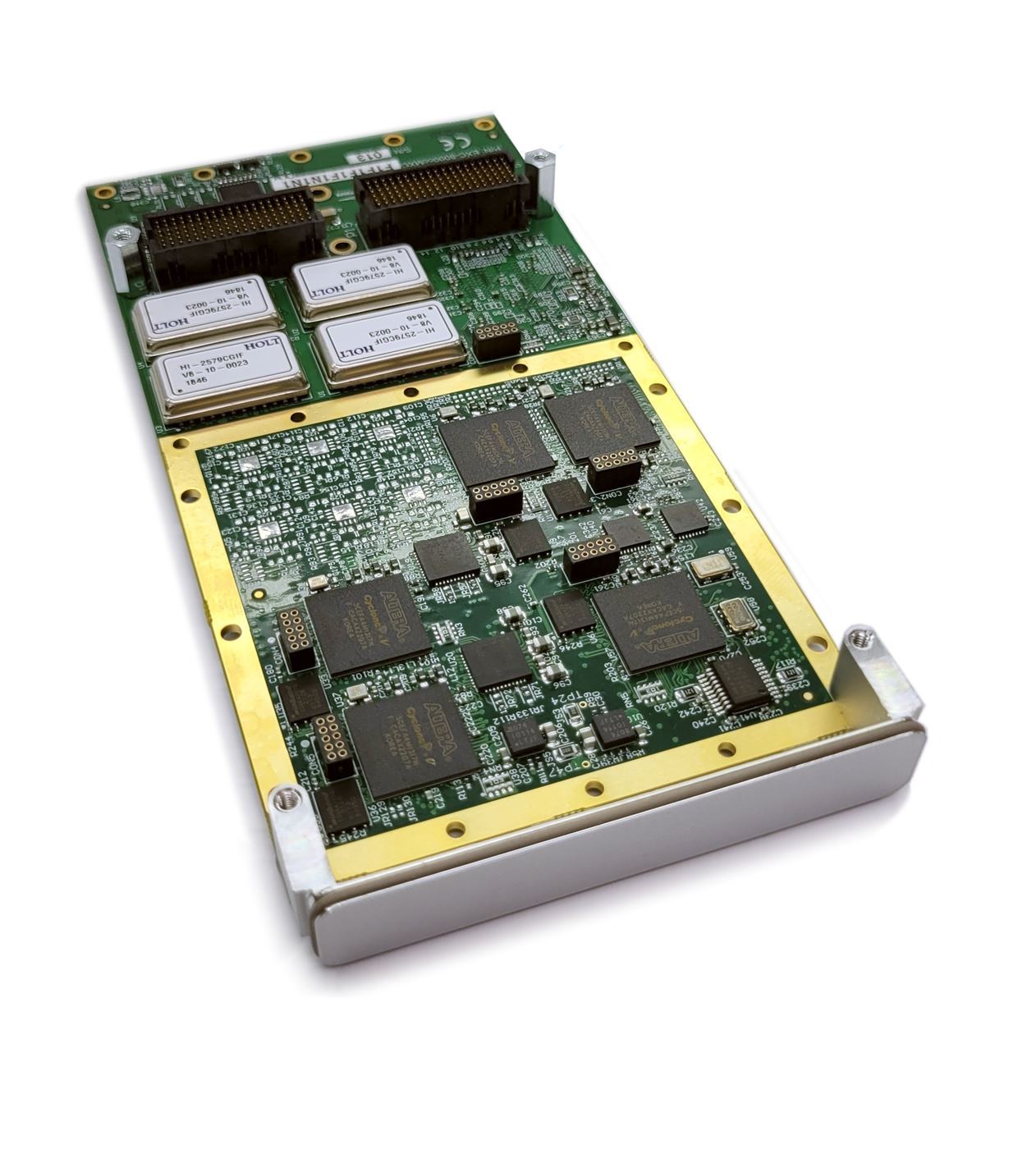

The EXC-8000ccXMC is an advanced conduction cooled Multi Protocol card and together with the M8KDiscrete module gives you a Discrete test and simulation board for XMC compatible systems.

ccVPX

The EXC-8000ccVPX is an advanced conduction cooled Multi Protocol card and together with the M8KDiscrete module gives you a Discrete test and simulation board for VPX compatible systems.

PCI

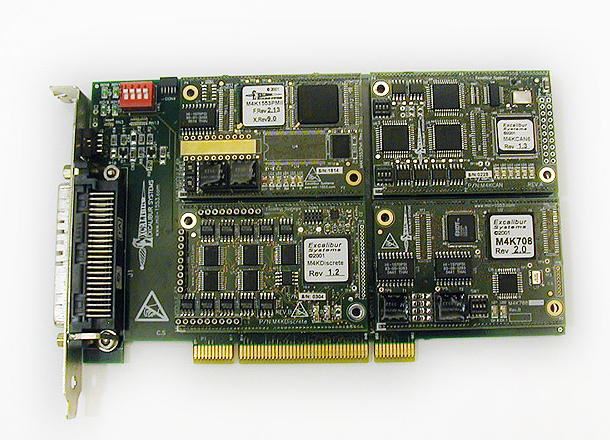

Excalibur's discrete PCI interface boards provide a complete solution for developing and testing discrete voltage-level interfaces.

Protocol Convertor

The MACCII is an advanced Multi Protocol convertor and together with the M8KDiscrete module it gives you an option to convert Discrete to a protocol of your choice.

cPCI

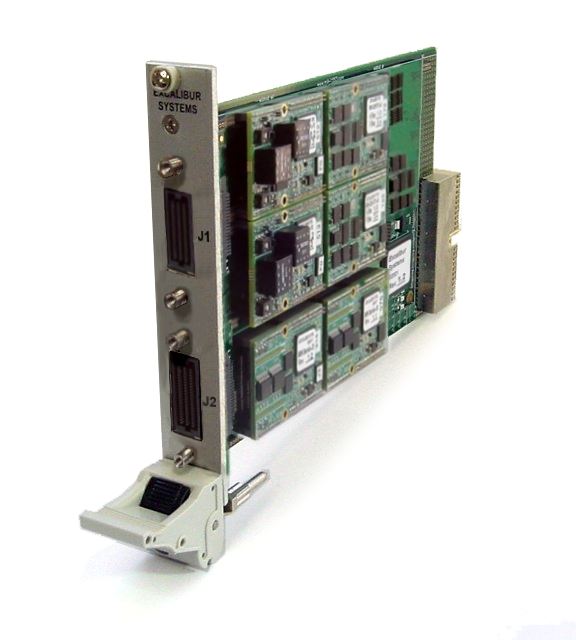

Excalibur's discrete Compact PCI interface boards provide a complete solution for developing and testing discrete voltage-level interfaces.

PCI/104-Express

The EXC-8000PCIe104/xx together with the M8KDiscrete module is an advanced Discretes test and simulation board for PCI/104-Express systems

PC/104 Plus

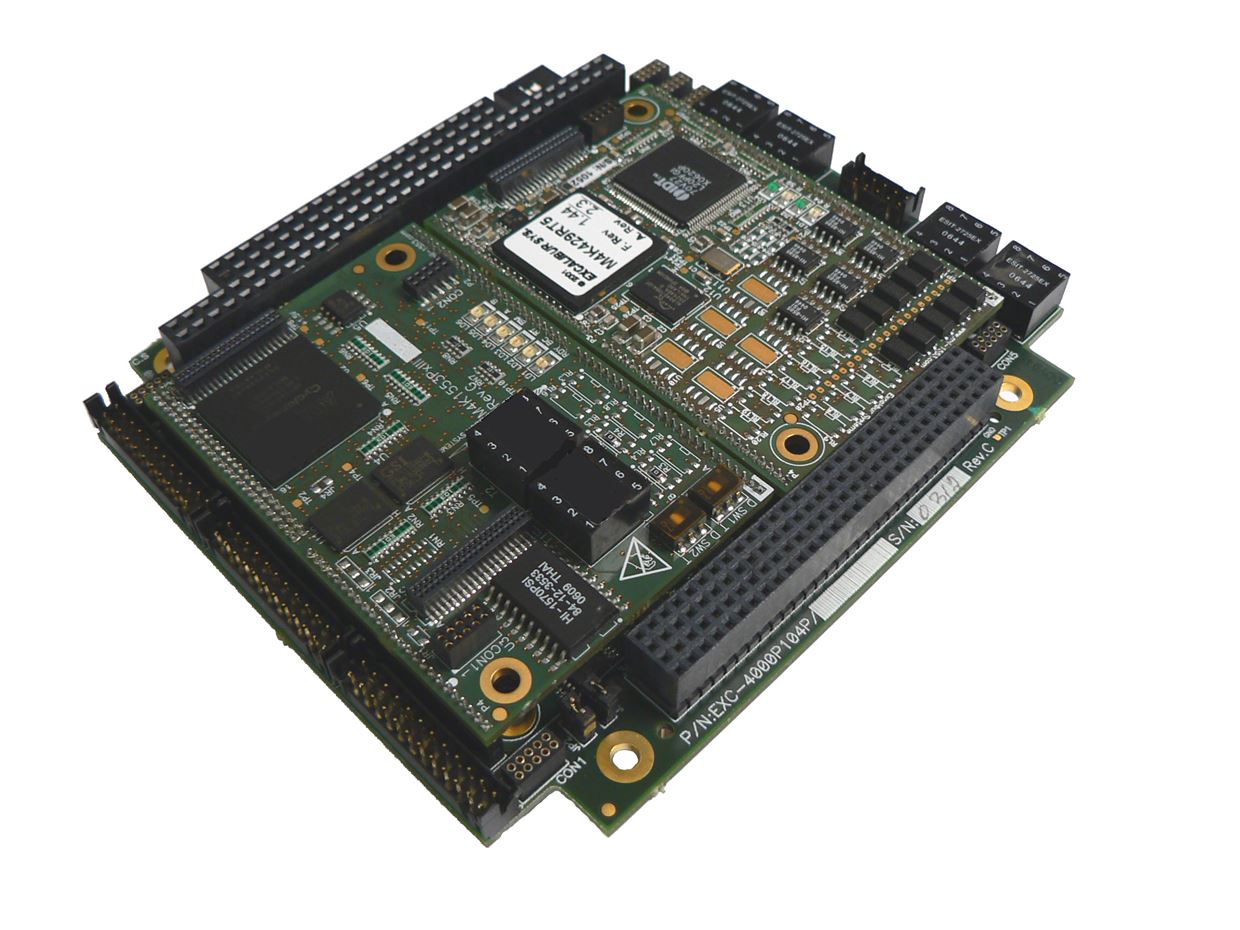

The EXC-4000P104Plus/xx card for PC/104 Plus systems support up to forty Discrete channels using the M4KDiscrete module.
